Brandauer are a proud, full service supplier and the only UK supplier of EloPin® Press-Fit.

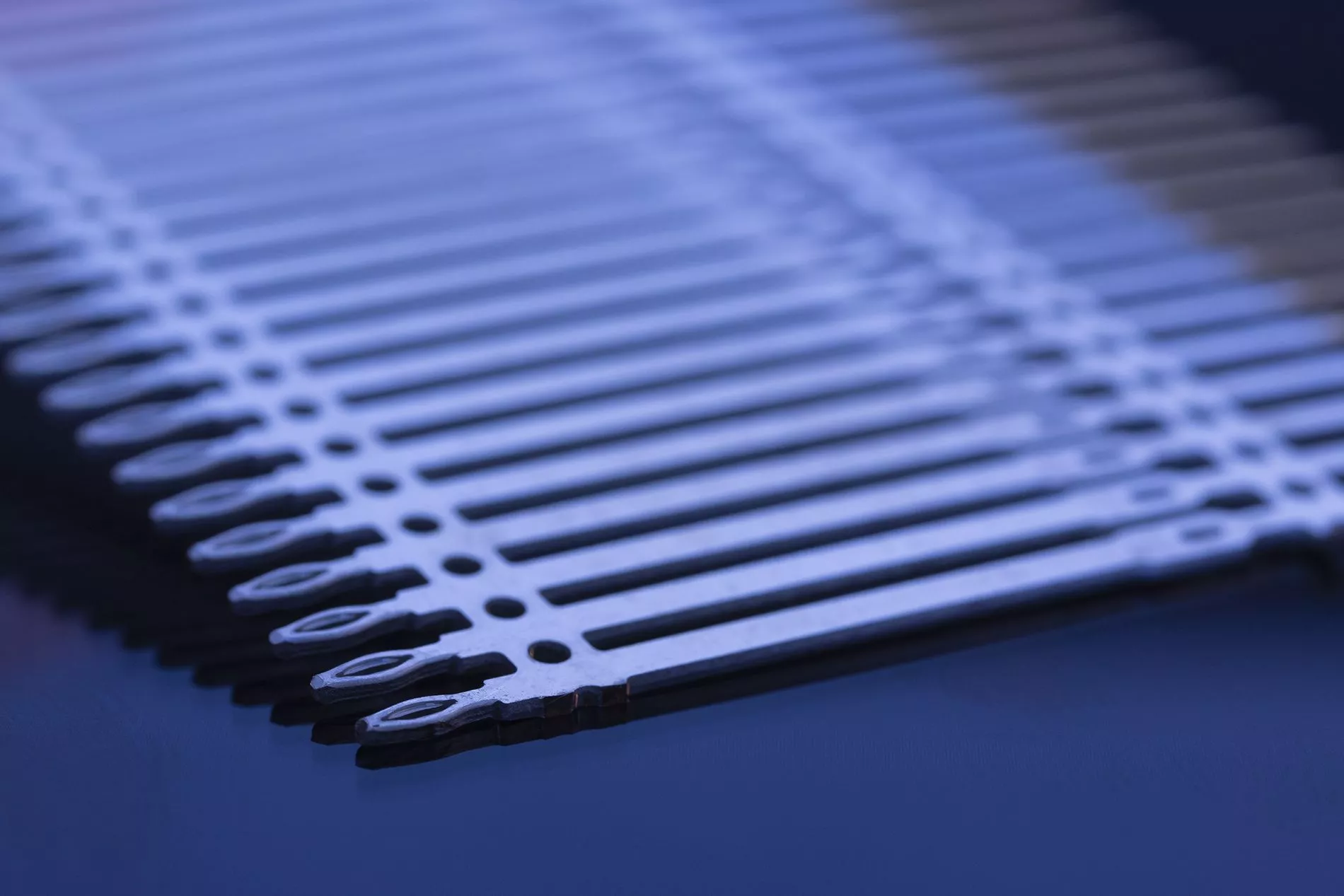

A press-fit pin enables the solderless connection of wire wrap pins to a PCB. With elastically deformed or solid pins which are forced into the PCBs plated-through-holes with insertion-tools, the result is a gas-tight and reliable connection between the press-fit-area of the pins and the PCB.

The EloPin® Press-fit is a product developed by TBS Sorig, manufactured and distributed by several independent licensees. As the only manufacturer in the UK with a license to supply EloPin®, coupled with a vast history of precision manufacturing, Brandauer are in prime position to satisfy all press-fit pin requirements.

More about TBS Sorig:

  • In partnership with Brandauer
  • License owner of EloPin®
  • Based in Germany
  • 20 years’ experience
  • A product developer and not a manufacturer

3 standard pin sizes available

EloPin®
Material Thinckness
06-10
0.60 mm
08-145
0.80 mm
08-16
0.80 mm
PTH Nominal Ø1 Ø1.45 Ø1.6
Press-In Force max. 100 N 160 N 160 N
Press-In Force typical 65 N 115 N 85 N
Push-Out Force min. 30 N 40 N 50 N
Push-Out Force typical 60 N 135 N 105 N
Contact Resistance max. 1 mΩ 1 mΩ 1 mΩ
Contact Resistance typical 0.01 mΩ 0.01 mΩ 0.01 mΩ
Current-Carrying Capacity 8 A not tested³ 25 A
Approved to DIN 60352-5 tick tick tick

4 base material options

Application Type Automotive Interior Automotive Engine Compartment Power Modules Telecommunication
Base Material CuSn6 CuNi3Si1Mg (K55)* CuCrAgFeTiSi (K88)* CuSn6 / K55*
Electrical Conductivity MS/m 9 25 46 9 / 25
Thermal Cond. W/(m·K) 75 190 320 75 / 190
Surface Finish Sn100 on Ni Sn100 on Ni Sn100 on Ni Sn100 on Ni
Max. Usage Temperature 95°C 150°C 150°C** 95°C / 150°C
EloPin® 06-10 (T nom=0.60 mm) + + +
EloPin® 08-145 (T nom=0.80 mm) + +
EloPin® 08-16 (T nom=0.80 mm) + + +

* Wieland Brand Name
** Tested by some customers to 170oC

Approvals

  • DIN EN 60352-5
  • PAT No. 19831672
  • In field for multiple OEMs

EloPin® benefits:

  • Low press-in force & high push-out force
  • High mechanical stability
  • Gas-tight, reliable connection
  • Temperature range: -40°C to 150°C
  • Low electrical resistance
  • High elasticity
  • Usable in overmoulded hybrid parts
  • No tin chips
  • High economic efficiency
  • RoHS compliant

Why use Brandauer?

  • Proven EloPin® technology partner
  • 20 years’ experience of stamping press-fit
  • Process flexibility: Vertical/horizontal decoiling/recoiling
  • Quality: Precision strip & inline inspection
  • Proven supply chain for raw material with local selective plating
  • Bespoke CAD: 3 x VISI VERO 3D
  • In-house precision tooling partnership with Meusberger
  • Rapid lead times on standard tooling
  • Full service supplier and the only UK supplier of EloPin®

Whatever the application, Brandauer have the in-house capabilities to supply press-fit pins to a client’s exact specification.
